HARDWARE FEATURES
Interface: 1× Fast Ethernet (RJ-45) Port (Support IEEE802.3af PoE)
Button: Reset
Power Supply: 802.3af PoE or external 9VDC/0.6A power supply
Power Consumption: 2.8 W
Dimensions: ( W x D x H ) 7.5×6.7×1.2 in (189.5×170.5×29.7mm)
Dimensions: 7.5×6.8×1.2 in (189.4×172.3×29.5mm)
Antenna Type: Internal 2× 4 dBi Omni
Mounting: Ceiling /Wall Mounting (Kits included)

WIRELESS FEATURES
Wireless Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency: 2.4–2.4835 GHz
Signal Rate: 11n: Up to 300Mbps(dynamic) - 11g: Up to 54Mbps(dynamic)- 11b: Up to 11Mbps(dynamic)
Reception Sensitivity:300M: -71dBm@10% PER
150M: -75dBm@10% PER
54M: -78dBm@10% PER
11M: -93dBm@8% PER
6M: -92dBm@10% PER
1M: -96dBm@8% PER
Wireless Functions: Multiple SSIDs (Up to 8 SSIDs)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security: Captive Portal Authentication - Access Control - Wireless MAC Address Filtering - Wireless Isolation Between Clients - SSID to VLAN Mapping - Rogue AP Detection - 802.1X Support - 64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK
Transmission Power: CE: - ≤19 dBm (EIRP - FCC: - ≤21 dBm

MANAGEMENT
Omada App: Yes
Centralized Management: Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller
Cloud Access: Yes (Through OC300, OC200, or Omada Software Controller)
Email Alerts: Yes
LED ON/OFF Control: Yes
Management MAC Access Control: Yes
SNMP: v1,v2c
System Logging Local/Remote Syslog: Local/Remote Syslog
SSH: Yes
Web-based Management: HTTP/HTTPS
L3 Management: Yes
Multi-site Management: Yes
Management VLAN: Yes

OTHERS
Certification: CE, FCC, RoHS

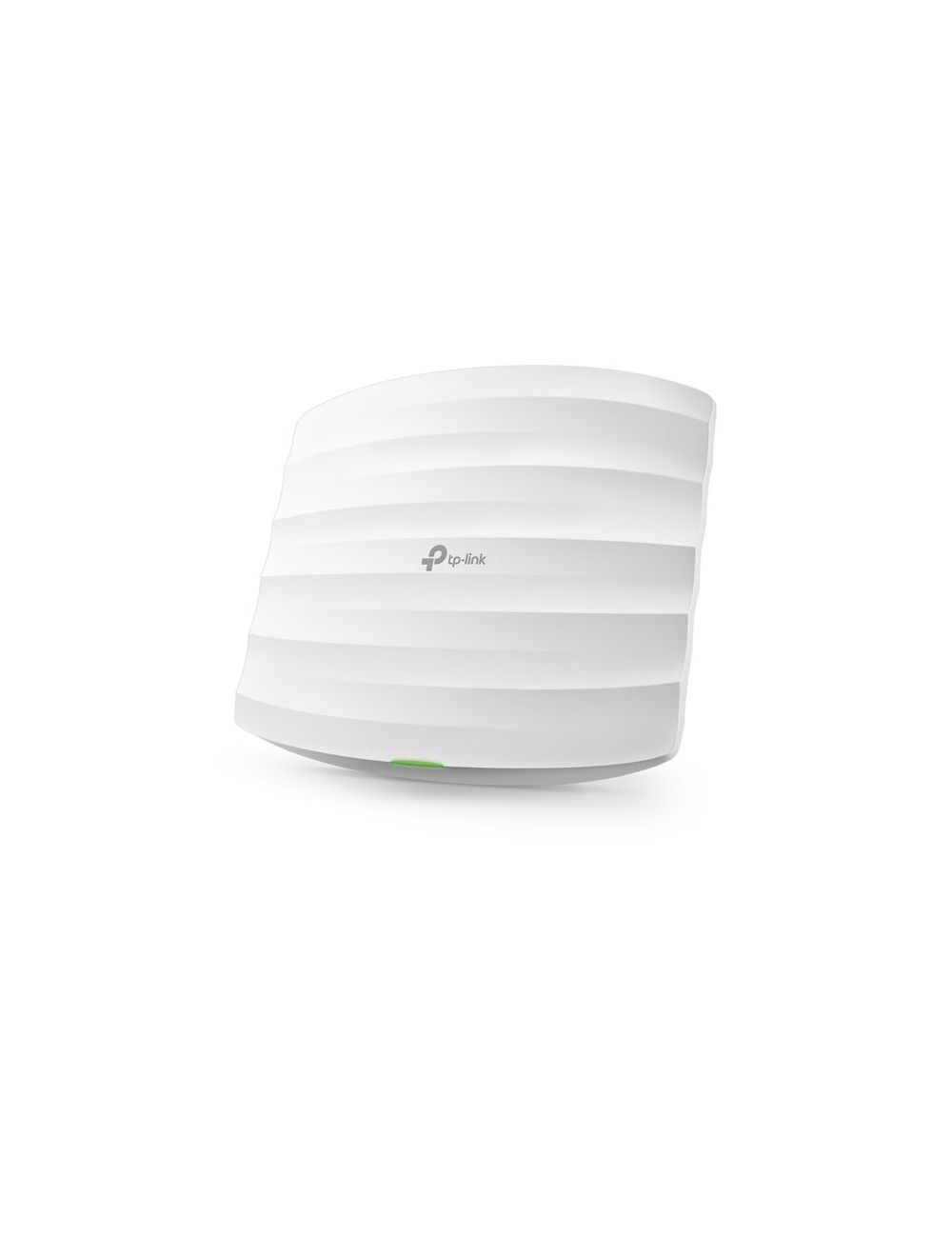

Package Contents:300Mbps Wireless N Ceiling Mount Access Point EAP115
Power Adapter
Mounting Kits
Installation Guide
System Requirements: Microsoft Windows 10/8/7/Vista/XP
Environment: Operating Temperature: 0–40 ℃ (32–104 ℉)
Storage Temperature: -40–70 ℃ (-40–158 ℉)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
